Rotary tilling
900 mm width · 130–250 mm listed depth
24 blades · 360 rpm listed shaft speed. Large guard required.
Factory direct · OEM & ODMREMOTE-CONTROL TRACKED IMPLEMENT CARRIER

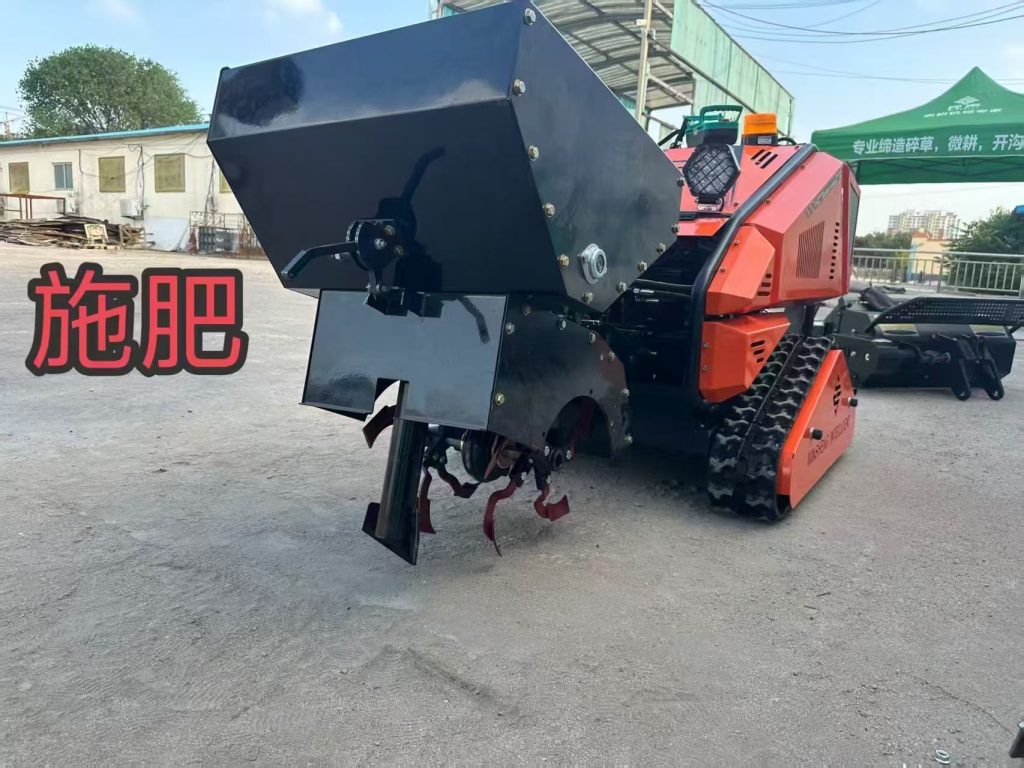

Multi-function TillerA platform for multiple tasks.
One tracked platform for rotary tilling, flail mowing and other attachment-based tasks. Choose the tools for your ground, then confirm the engine and control package.
Product photographs · confirm the supplied finish and configuration.
900mmRotary tilling width
800mmFlail mowing width
455kgWith flail attachment
For your own operation, dealer range or equipment business.
Discuss this model on WhatsAppWorking demonstration
See the platform working.
Watch the flail attachment at work in the supplied field footage.
60-second excerpt from the supplied demonstration, showing flail mowing. Other tasks require the appropriate attachments. Footage carries supplier captions; confirm the current configuration against the specification below.
Multi-function Tiller / TECHNICAL DATA
Technical specifications.
Compare cutting width, overall size and packing dimensions separately.
Machine & drive
- Source configuration
- MSGP-80A
- Engine options
- KOOP-195F / KYHON-195F
- Main transmission
- Direct shaft drive
- Clutch
- Friction plate
- Travel motors
- 48 V / 800 W × 2
- Lift
- Remote hydraulic-cylinder lift
- Travel speed
- 35–50 m/min
- Remote range (listed)
- Up to 400 m; conditions dependent
Power & configuration
- Fuel tank
- 5.5 L
- Fuel consumption (listed)
- 1.5 L/h
- Starting battery voltage
- 12 V; capacity to be confirmed
- Travel battery voltage
- 48 V; capacity to be confirmed
- Range-extender generator (listed)
- 56 V / 70 A DC
- Generator packages
- Single / dual generator options
- Control options
- Wired control, remote starting, throttle and engine shut-off: confirm selected package
Machine & packing with flail mower
- Overall size
- 1780 × 980 × 980 mm
- Machine weight with flail mower
- 455 kg
- Machine packing size
- 2075 × 1055 × 1050 mm
- Attachment crate without fertilizer hopper / blade
- 950 × 1100 × 450 mm
- Full attachment crate with hopper / blade
- 1000 × 1120 × 750 mm
- Packed weight
- Confirm with selected attachment package
Dimensions are listed as length × width × height. Final engine, supplied items and configuration are confirmed in the quotation.
Are all attachments included?
No. The source quotation lists the base machine separately from tools and guards. Specify the attachments you need so the supplied package can be itemised.
Which guards do the tools need?
The supplier specifies the large guard for tilling, weeding and backfilling, and the small guard for trenching and ridging. Confirm the correct guard and fittings with each tool.
Why are tilling and mowing widths different?
They use different attachments. The supplied sheet lists 900 mm rotary tilling width and 800 mm flail mowing width. Overall machine dimensions also depend on the installed tool.
Can I start the engine and adjust the throttle remotely?
Remote starting, remote throttle and remote engine shut-off appear in an optional control package. Confirm these functions in the quotation rather than assuming they are standard.
What data applies to this page?
This page uses the MSGP-80A multi-function platform from the supplied quotation. The separate MSDP-80 flail-only machine has different drive and engine specifications.
What do you need to recommend a package?
Send your intended jobs, soil or vegetation conditions, access width, quantity and destination. We can discuss tools, guards, controls, service parts and shipping together.
Request a quotationLet’s discuss
Let’s discuss
Multi-function Tiller.
Tell us where it will work and where it needs to go. Start a conversation about the configuration, price and delivery.
