Petrol
Loncin 212 cc
Yellow machine shown. Ask for engine-specific EPA / Euro 5 documentation.
Factory direct · OEM & ODMCOMPACT TRACKED FLAIL MOWER
HTL-550SRemote-control flail mower.
A 550 mm flail mower with hydraulic height adjustment and twin brushless travel motors. Choose Loncin 212 cc petrol or YARMAX 178F diesel power.
Product photographs · confirm the supplied finish and configuration.
550mmCutting width
20–150mmCutting height
230kgListed net weight
For your own operation, dealer range or equipment business.
Discuss this model on WhatsAppWhole-machine photographs
Look around the 550S.
Explore full-machine views and open any photograph for a closer look.
Working demonstration
See the 550S at work.
Watch the machine move through vegetation before you explore the details.
HTL-550S · approximately 39 seconds of supplied mowing footage, showing the yellow petrol configuration. Diesel photographs are labelled separately; equipment and finish may vary.
Construction & controls
Machine details.
Select a photo for a closer look.
01 / CUTTING & LIFT
A compact flail configuration.
The 550S combines swinging blades with hydraulic adjustment from 20 to 150 mm. The yellow machine shown carries an optional front snow blade, quoted separately.
550 mm cut · 20–150 mm cutting height02 / DIESEL OPTION
See the YARMAX 178F installation.
This close-up shows the diesel engine fitted to the blue machine. The alternative petrol configuration uses a Loncin 212 cc engine. Select fuel type before confirming the quotation.
YARMAX 178F diesel · Loncin 212 cc petrol option03 / TRACKED TRAVEL
A closer look at the running gear.
150 mm tracks are paired with two 750 W brushless travel motors. Review access width, surface conditions and service requirements when selecting your machine.
750 W × 2 brushless motors · 150 mm tracksHTL-550S / TECHNICAL DATA
Technical specifications.
Compare cutting width, overall size and packing dimensions separately.
Cutting & controls
- Cutting width
- 550 mm
- Cutting height
- 20–150 mm, adjustable
- Cutting system
- Flail / swinging blades
- Height adjustment
- Hydraulic lift
- Engine start / stop
- Remote function listed; confirm for selected engine
Engine options & drive
- Petrol engine
- Loncin 212 cc
- Diesel engine
- YARMAX 178F
- Travel motors
- 750 W × 2, brushless
- Travel speed
- 4 km/h
- Track width
- 150 mm
- Fuel tank (listed)
- 1.2 L
- Battery
- 24 V / 24 Ah
- Supplier climbing figure
- Up to 45°; operating conditions and limits require confirmation
Size & transport
- Machine size
- 1000 × 1030 × 710 mm
- Net weight
- 230 kg
- Packing size
- 1100 × 1130 × 810 mm
- Packed weight
- 260 kg
Dimensions are listed as length × width × height. Final engine, supplied items and configuration are confirmed in the quotation.
How does the 550S differ from the 550 and 550H?
The 550S uses a flail / swinging-blade system and offers petrol or diesel power. The 550 and 550H use a flat blade and a Loncin 224 cc petrol engine. The 550S petrol engine is 212 cc.
Which photographs show each engine?

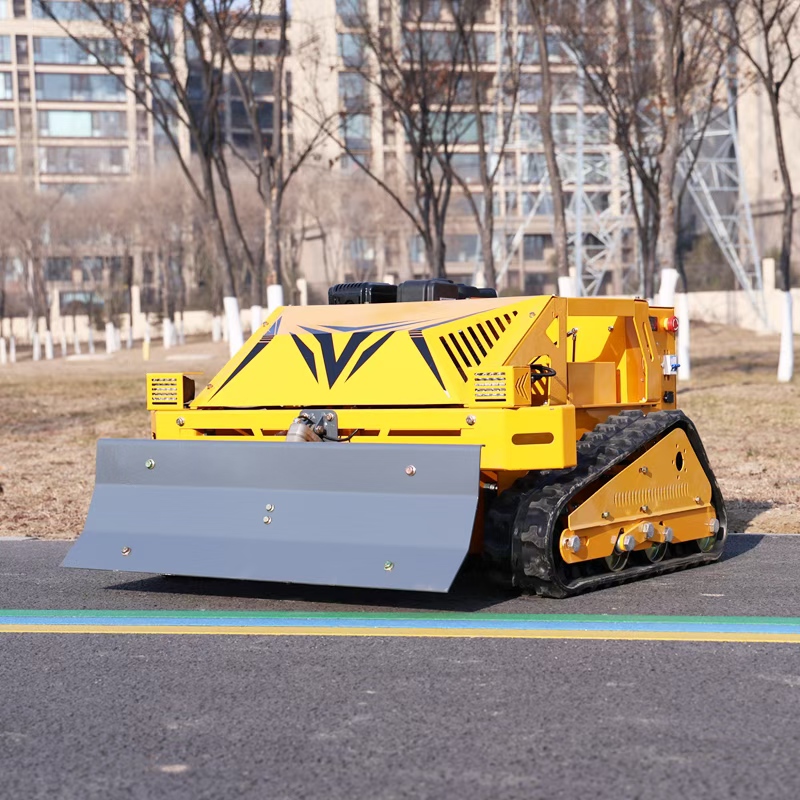

The blue machines show the YARMAX diesel configuration. The yellow machines show the petrol configuration, with an optional front snow blade. Confirm finish and included equipment in your quotation.
Is the snow blade included?
The front snow blade is an optional attachment. Its mounting arrangement, controls and price are confirmed separately.
What engine documentation should I request?
The sheet states EPA / Euro 5 for the petrol option and no EPA certification for the diesel option. Confirm destination requirements and exact engine documents before selecting.
Is 45° a safe operating slope?
The supplier lists a maximum climbing figure of 45°. This is not a guarantee of safe mowing on every slope. Consult the model-specific operating manual and confirm permitted conditions before use.
What is included with the machine?
The sheet lists a two-year machine warranty and one spare blade set. Coverage, exclusions and the exact supplied configuration are confirmed in the quotation.
