01 / FOUR-WHEEL DRIVE
Four motors. Four driven wheels.
Each wheel is driven by a 350 W brushed electric motor. Inspect the wheel-drive assembly and discuss the surface and vegetation where you plan to work.
350 W × 4 brushed travel motorsFactory direct · OEM & ODMFOUR-WHEEL REMOTE-CONTROL MOWER

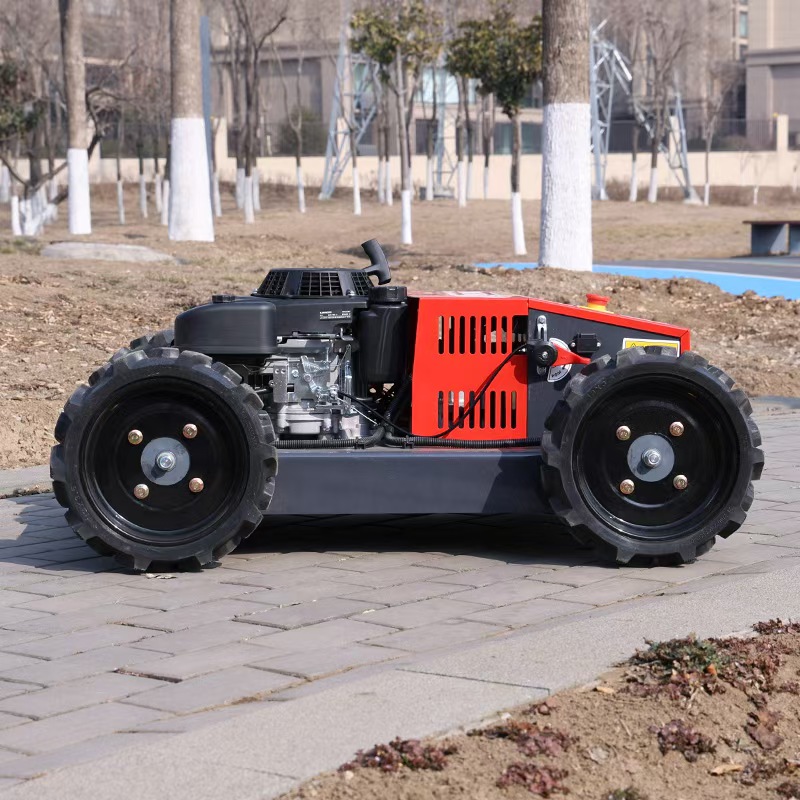

HTL-500WRemote-control wheeled mower.
A 500 mm flat-blade mower with four driven wheels, a Loncin 224 cc petrol engine and a fixed 55 mm cutting height.
Product photographs · confirm the supplied finish and configuration.
500mmCutting width
55mmFixed cutting height
90kgNet weight
For your own operation, dealer range or equipment business.
Discuss this model on WhatsAppWhole-machine photographs
Look around the 500W.
Explore full-machine views and open any photograph for a closer look.
Working demonstration
See the 500W at work.
Watch the machine move through vegetation before you explore the details.
HTL-500W · approximately 12 seconds of supplied field footage. Actual results depend on vegetation and ground conditions.
Construction & controls
Machine details.
Select a photo for a closer look.
02 / PETROL POWER
Loncin 224 cc, up close.
The open engine layout gives a clear view of the installed petrol engine. Confirm the engine documentation and maintenance parts with your chosen configuration.
224 cc petrol engine · 1.2 L fuel tank03 / REMOTE CONTROL
See the controls before you choose.
The supplied configuration lists remote engine start and stop. Review the controller layout and included functions with your quotation.
Remote start / stop · 24 V / 24 Ah batteryHTL-500W / TECHNICAL DATA
Technical specifications.
Compare cutting width, overall size and packing dimensions separately.
Cutting & control
- Cutting width
- 500 mm
- Cutting height
- 55 mm, fixed
- Blade type
- Flat blade
- Engine start / stop
- Remote control
Power & travel
- Engine
- Loncin 224 cc, petrol
- Drive
- Four-wheel drive
- Travel motors
- 350 W × 4, brushed
- Travel speed
- 3 km/h
- Fuel tank
- 1.2 L
- Battery
- 24 V / 24 Ah
Size & transport
- Machine size
- 1000 × 800 × 460 mm
- Net weight
- 90 kg
- Packing size
- 1100 × 880 × 590 mm
- Packed weight
- 125 kg
Dimensions are listed as length × width × height. Final engine, supplied items and configuration are confirmed in the quotation.
Can I adjust the cutting height?
The supplied 500W specification lists a fixed cutting height of 55 mm. If adjustable cutting height is required, compare the tracked 550 and 550H models.
Is the machine 500 mm wide?
No. 500 mm is the cutting width; overall machine width is 800 mm. Allow additional clearance for access and turning.
Does this model use tracks or wheels?
It uses four wheels with four 350 W brushed drive motors. Share your ground conditions before choosing between wheeled and tracked machines.
What engine documents are available?
The product sheet states EPA / Euro 5 for the petrol engine. Request documents for the exact engine and destination before ordering.
What warranty and spare parts are included?
The supplied sheet lists a two-year machine warranty and one spare blade set. Coverage, exclusions and included items are confirmed in the quotation.
